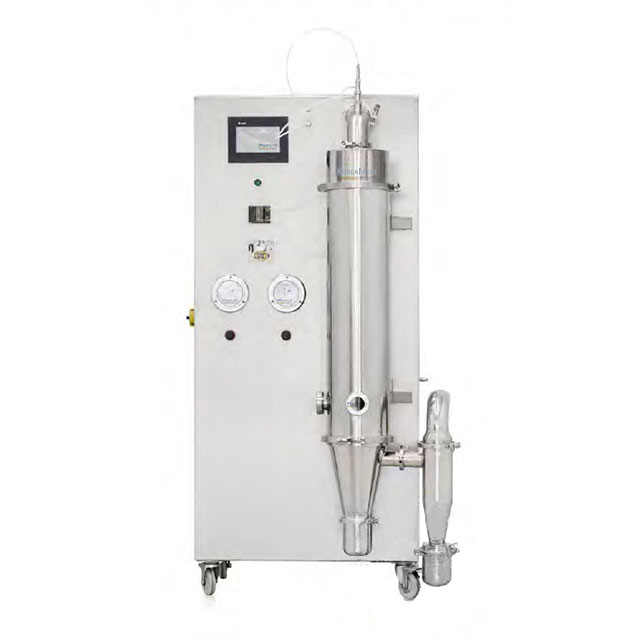

KLSD-3000 mini spray dryer is self contained and supplied complete and ready for immediate operation. All major components are housed within a stainless steel cabinet and the unit can be used on a bench top or with an optional stainless steel stand. The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode , and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . KLSD-3000
MINI SPRAY APPLICATIONS KLSD-3000
mini spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample(10-120μm) is required. This technique has successfully processed materials in the following areas: Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals
• Heat Sensitive Materials • Plastics • Polymers and
Resins • Perfumes • Ceramics and Advanced Materials • Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.
KLSD-3000
MINI SPRAY DRYER TECHNIQUE
A menu driven microprocessor controller allows the selection of inlet temperature, airflow, automatic de-blocker frequency and pump speed. The controller features an USB output for connection to a PC or datalogger and software allows the control and monitoring of all functions and printing of results(optional). The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber. At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber. Heated air is blown through the main chamber evaporating the liquid content of the atomised spray. The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system. KLSD-3000 MINI SPRAY DRYER ADVANTAGES Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. air oilless compressor , the sound is low than 60db Made of SUS-316 Stainless steel. Easy operating. To assure accurate temperature control and easy parameter adjusting, KLSD-3000 applies PID. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed. Narrow size distribution of particles.(10-100um) Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled KLSD-300
MINI SPRAY DRYER TECHNIACL INFORMATION Sr.no | Parameter | KLSD-3000 Spray Dryer | 1 | Power | 5500W | 2 | Voltage | 220V,50/60 Hz | 3 | Atomizer material | SUS 316 Stainless steel | 4 | Evaporating Capacity | 4 l/h for water | 5 | Airflow | 0-330 mᶟ/h | 6 | max. Input temperature | 350⁰C | 7 | Heater power | 5000W | 8 | Temperature precision | ±1⁰C | 9 | Spray gas | 4.2mᶟ/h, 2-5bar | 10 | Nozzle jet | 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available) | 11 | Nozzle type | Two fluid nozzle | 12 | Possible particle size range | 5-100µm | 13 | Mean Residence time | 1.0-1.5 sec | 14 | Operation mode | Automatic/Manual | 15 | Max. Sample feed | 5000ml/hr | 16 | Minimum sample volume | 100ml | 17 | Spray chamber material | SUS 304 stainless steel | 18 | Cyclone separator material | SUS 304 stainless steel | 19 | Receiving tank material | SUS 304 stainless steel | 20 | Body material | SUS304 Stainless steel | 21 | Seal of cyclone/cylinder | Silicone | 22 | Deblocking | Automatic | 23 | Sound | <60db | 24 | Dimensions | 950*750*1700 | 25 | Weight | 150KG | 26 | Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency | 27 | Thermal protection | Blower does not stop until temp <90⁰C | 29 | Inert loop (for organic solvents) | Optional |
|
