** 특징 **
◆ Pilot Spray Dryer
- 연구센타, 대학, 소량 생산의 분무건조용인 실험 및 소형 기종은 매우 큰 융통성, 편리성과 실용성이 있게 설계를 하여 다음 단계 및 대량생산의 단계로 나아기기 위한 시험 및 예비생산 단계에서 사용할 수 있다
- 이방법은 건조와 동시에 원하는 과립 및 분말을 바로 획득하고 연속적인 작업공정을 통하여 얻은 결과물은 재료의 물성의 변화가 없이 유지된다.
- 분무건조기의 여러 매개변수의 선택 및 조작으로 최적의 제품을 얻을 수가 있기 때문에 이러한 조건들의 선택이 아주 중요하다.
- 소량의 용액, 현탁액 및 유액을 건조한 과립, 분말을 추출할 수가 있다.
- 시험 과정 중에 얻는 데이터는 대형 분무건조기 설비의 선택과 설계하기 위해서 중요한 기술 데이터를 제공한다.
◆ 분무기의 종류
1) 회전식 분무기
- 건조실 상부 중심에서 6기압의 압축공기으로 구동하는 터빈 시스템은 동력을 분무화 날개바퀴에 전달한다.
- 날개바퀴의 분무기는 부식이 되지 않는 재료로 제작한 탄화텅스텐재질로 부식성 재료에 적합하다.
- 5 -25μM직경의 과립이 생산된다.
2) 이류체 노즐 분무기
- 역시 건조실 상부 중심에서 배치하고, 0.5-2.0bar 압축 공기로 분무화를 진행하고, 원료와 압축 공기는 각각 분무기 노즐으로 보내 분무화를 형성하며, 이류체 분무기는 비교적 점성이 있는 재료의 처리에 적합하다.
- 건조시 온도에 민감성 재료에 적합하고, 과립 직경은 5 -25μM이다.
3) 분수식 이류체 노즐 분무기
- 배치가 건조실 밑바닥에 배치되어, 상향하여 분무한다.
- 분수식은 적합하여 비교적 유동성이 많는 재료에 적합하다.
- 일반적으로 매우 세밀한 자기와 온도에 민감하지 않는 재료의 분무건조에 쓰인다.
- 역류 모델은 건조기가 최적인 열효율을 이용하도록 하고, 그리고 재료가 건조실 체내에서 더욱 긴 체류기간을 유지하게 하여 회수율을 높일 수가 있다.
- 건조한 가루 과립은 15 -80μM 정도이다.
|
|
** Characteristic **
◆Product Descriptions
Pilot spray dryer has enjoyed unique success ever since it was first introduced to our customers.a lot of units have been supplied to universities. research centers. and specialist Powder Production facilities around the world.
It hasbeen introduced to meet the still increasing demand for a more flexible, reliable, modern and easy to handle laborotory dryer having different levels of control systems.
Same time, spray drying is a unique drying process involving both particle formation and drying.The powder characteristics can be controlled and powder properties maintained. Constant throughout a cont inous operation. the selection and operation of the atomizer is of extreme importance in achieving an optimum operation and production of high-quality powders.
Using our pilot spray dryer,small quantities of lolutions. suspensions, emulsions can be dried into representative powder samples. Test results from it provide important information for selecting the design and technical specification of a given drying project..
|
|

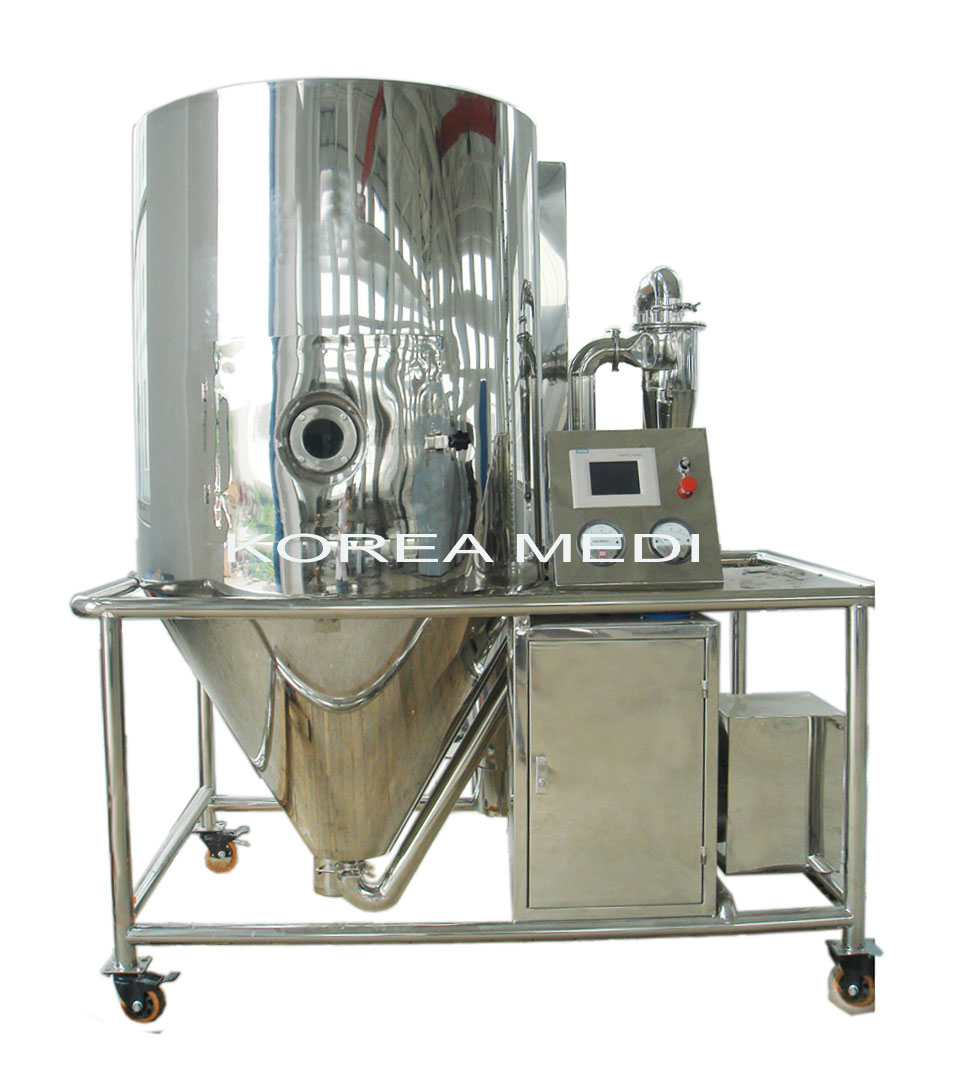

The KRSD-9 Spray Dryer -rotary
spray dryer- is designed
to dry the liquid material
into fine powder.
Droplets
through the atomizer on
the top of the drying chamber.
It's
featured with quick drying
process.
Specification
Model Type |
KRSD-5 |
Inlet Air
Temp.°C |
120~300°C |
Outlet Air
Temp.°C |
80~100°C |
Water evaporation |
5kg/h |
Atomizer
method |
Rotary atomizer
|
Rotating
speed |
25,000rpm(Max) |
Spray disc
dia. |
50mm |
Power |
8Kw |
Dry
chamber dimensions |
Dia0.9x1.75m |
Installation area |
1.6 x 1.5m |
The KMSD-9 Spray Dryer is
designde specially for giving
a spray dry to Korean Traditional
medicine herb process.
Provided
with air wiper and cold-air
jacket.
Specification
Model Type |
KTSD-12 |
Water evaporation |
5kg/h |
Liquid material Capacity |
3~5kg/h |
Raw material |
15~30% |
the percentage of water content dryed material |
3~5% |
Power |
25Kw |
Heater |
steam & electricity |
Dryed materia collector |
cyclone seperator, Wet scrubber |
Control
box |
PLC
control |
Inlet
Air Temp.°C |
150~200°C |
Outlet
Air Temp.°C |
80~100°C |
Dimensions (WxDxH) |
2 x
1.8 x 3 m |
The KMSD-9 Spray Dryer is a package unit and the smallest
spray dryer type using either rotary or nozzle atomizers. It has been supplied
to universities, research centres and specialist powder production facilities
around the world. On this Spray dryer small quantities of solutions, suspensions, and emulsions can be dried inrepresentative powder samples. Three alternative atomizing systems are offered:
Rotary atomizer, co-current two-fluid nozzle, and fountain two-fluid nozzle.
Water evaporative capacity: 1-7 kg/h.
- New generation of laboratory spray
dryers
- Choice of three
atomizers systems
- Dries
both aqueous and solvent
feedstocks safely
- Excellent
access, easy to clean
1.참고
자료 클릭 <--- Link to PDF file
2.참고 자료 클릭 <--- Link to PDF file
Specification
Model Type |
KMSD-9 |
Feed pump |
peristaltic |
Atomizer
method |
Rotary atomizer/ Two-fluid nozzle(co-current/ fountain) |
Pre-filter |
EU4 |
Heater |
7.5Kw |
Drying chanber |
Dia. 800x620mm |
Cyclone |
Dia. 140mm |
Cartridge filter |
optional, in-line |
Exhaust
fan |
0.75Kw |
Supply
fan |
0.75Kw |
Etc |
HEPA filter,Tube/ shell condensor, Oxygen analyser |
Optional |
Cartridge
filter, Nitrogen
compressor |
|
|
|
|
|
|
|
|
|
|
