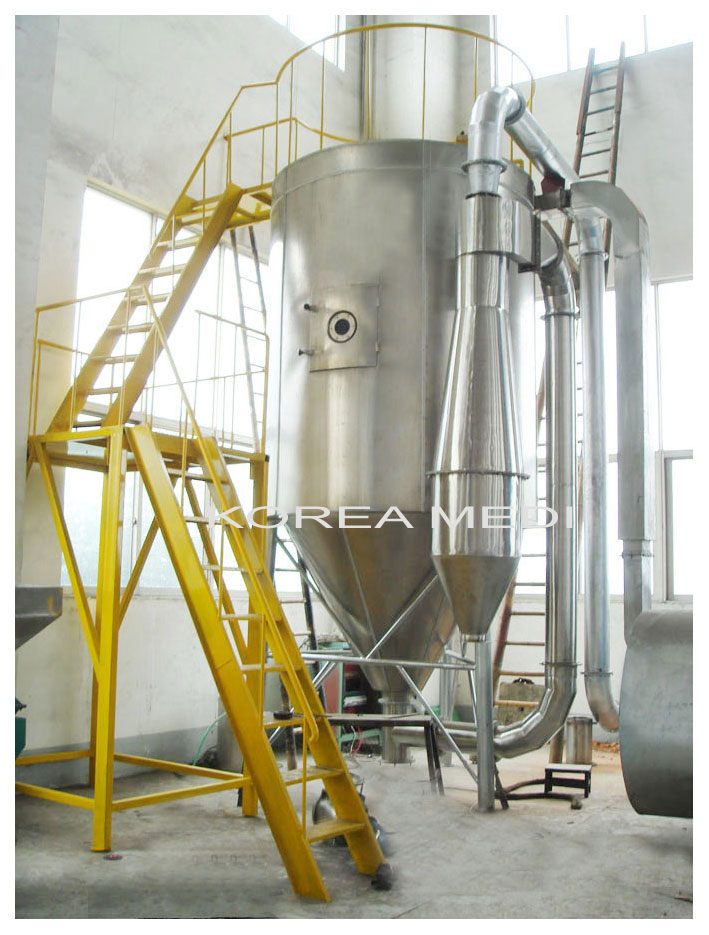

Rotary Spray Dryer KRSD-25/ 50   회전식 분무건조기 KRSD-25/ 50







** 특징 **
회전식 분무건조기는 원심분무기라고도 하며, 분무기가 건조실 상부 중앙에 위치하여 가장자리에 작은 구멍을 뚫어놓은 원판disk를 5000~25000rpm으로 회전시키면서 액체를 원판의 내부로 유입시키면 액체는 원심력에 의해서 높은 압력으로 구멍을 통과하면서 균일한 크기의 분무입자(50~60μM)을 만들게 된다. 이장치는 액체속의 고형분에 의해서 마모될 염려가 적고 펌프압력이 낮은 조건에서 여러 가지 원료를 취급할 수가 있으며 원료의 유량을 독립적으로 변화시킬 수가 있다.


** Characteristic **
The rotary spray dryer is designed to dry the liquid material into fine powder. Drolets through the atomizer on the
top of the drying chamber.
It's featured with quick drying process, high efficiency and advanced automatic-control, all this makes the powd
-er have good dispersity flexiability and dissolvability.
This system can be used extensively in chemical industry, light industry, food process, phamacy and biochemical industry.
Scope of the supply: Water evaporative capacity: 5~12000kg/h


1.참고 자료 클릭 <--- Link to PDF file      2.참고 자료 클릭 <--- Link to PDF file

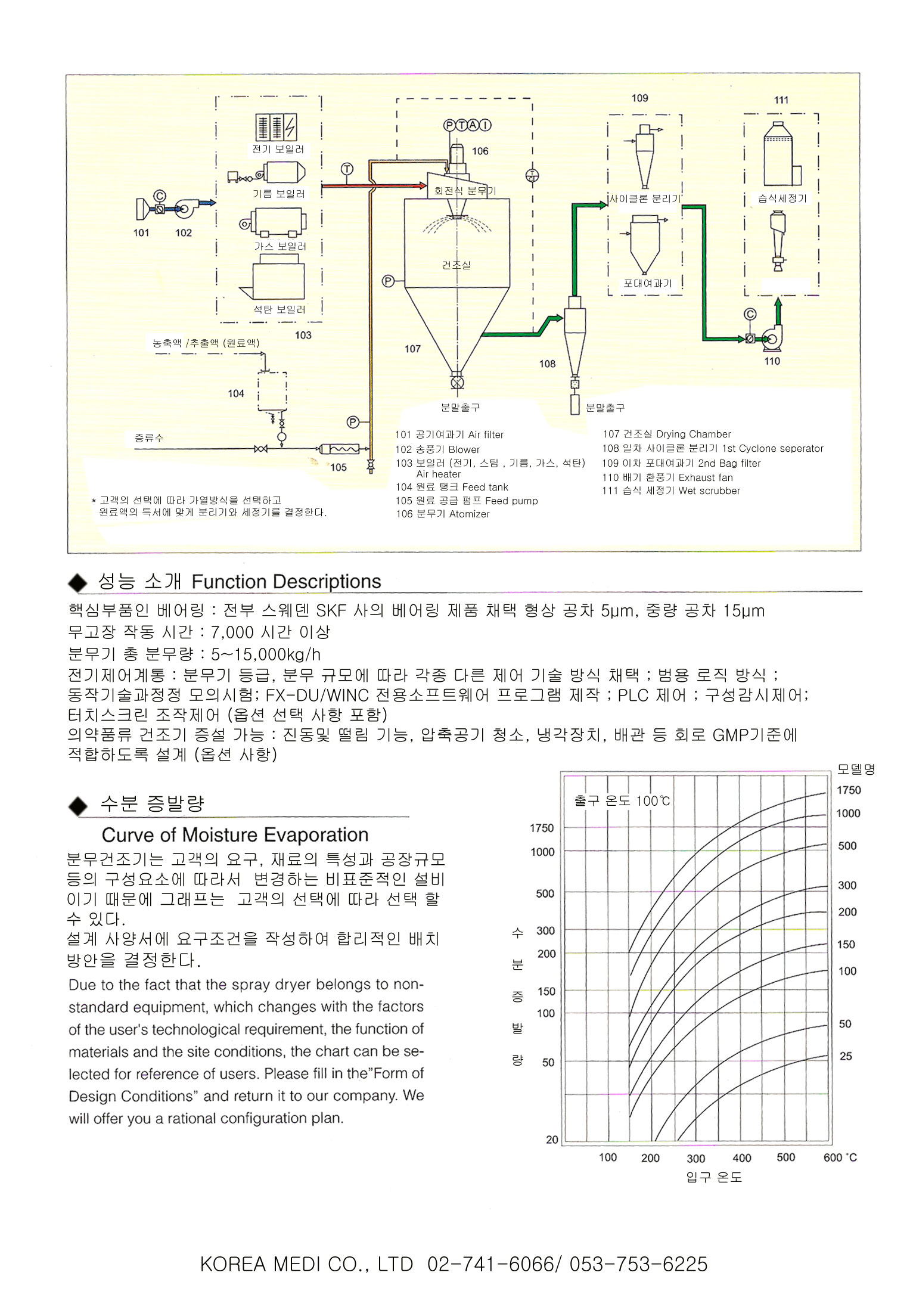

큰그림보기
