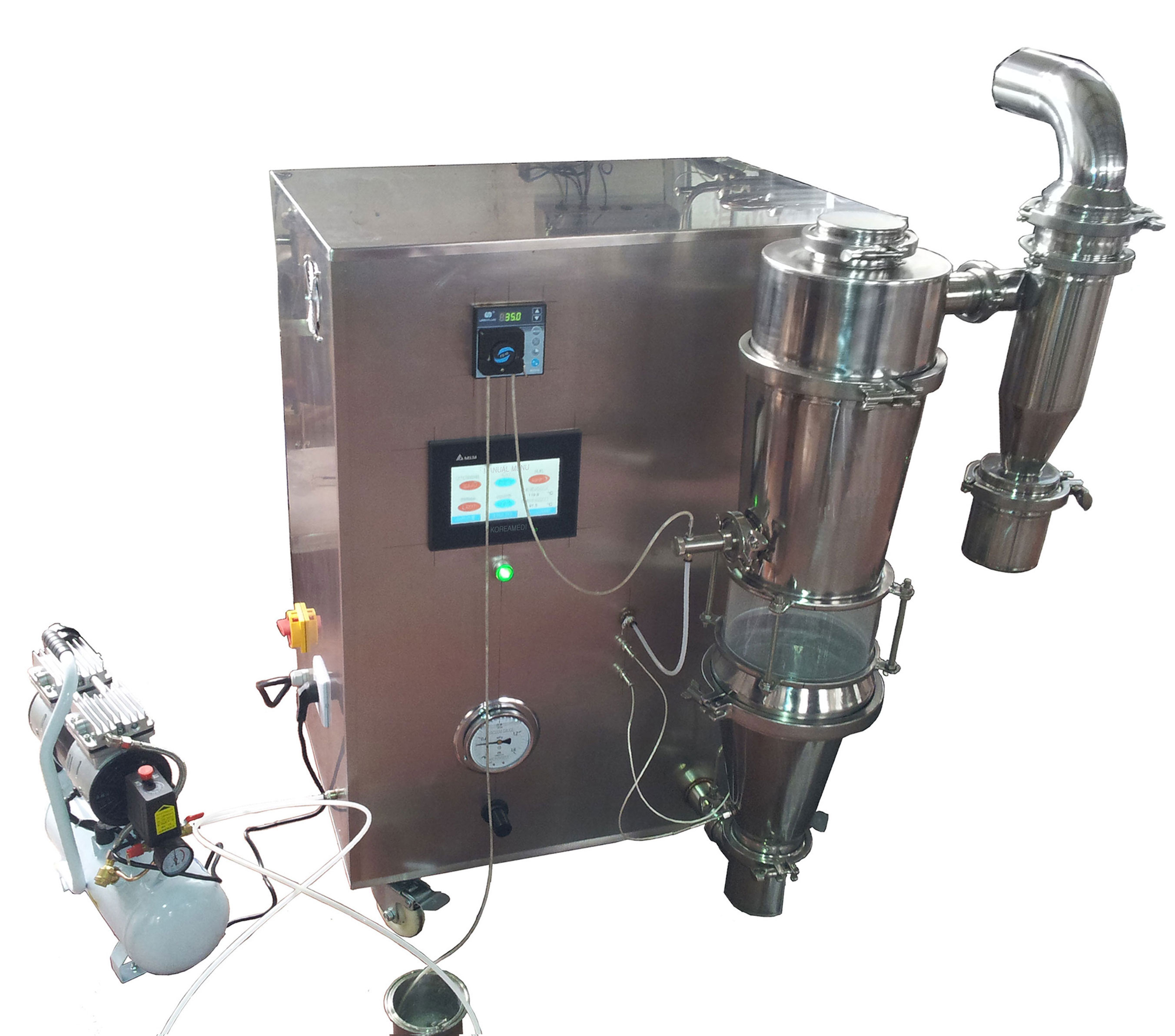

랩용 저온 분무 건조기KLSD-2000/ Lab low temp. spray dryer KLSD-2000





** 특징 **
- 실험실에서의 추출물의 분무 건조는 실험연구에서의 어려운 문제이다.
이러한 추출물들은 높은 온도에서 녹기 쉬운 성분을 많이 가지고 있어 분무건조할 때에 건조실 벽에 같은 끈끈한 사탕 형태의 물질로 되어진다. 천연물 추출 당분성 분무 건조시에는 재료는 즉시 녹아 전통적인 분무 건조기로는 결과적으로 연구시 적합한 유동성 분말을 획득하기 어렵다.

- 때때로 보조 재료로 많은 경우에 기타 분말을 첨가하지만, 만족할만한 효과를 보지는 못한다.. KLSD-2000 실험실 저온 분무 건조기는  낮은 온도에서 우수한 유동성의 분말 입자를 얻을 수 있다.

- 높은 수율과 특히 110 ° C 의 낮은 온도에서 빠른 분무건조를 달성하고 고분자 재료, 열에 과민한 물질등에 매우 편리하고 안전한 건조 방법을 제공한다.

- 조립 완성품의 디자인이 정밀하고, 실험실안에 독립적으로 설치가 가능하며 스테인레스 스틸로 설계제작되었다. 일체식으로 제작되었으며, 별도의 장치없이 바로 사용이 가능하다. (공압컴프레셔는 별도구입 및 설치하여야 한다).

- 작업시 전원을 켜고 LCD터치스크린으로 조작하며, 자동으로 혹은 수동으로 작업과정을 채택할 수 있고, 조작과 실험 과정의 감독을 편리할 수가 있다.

** 적용 범위 **

1. 낮은 온도 (의 1) 스프레이 건조 110 ) 열민감성 재료에 사용한다.

2. 7 "고해상도 LCD, 사용자 중심의 인터페이스, 메뉴, 작업 절차, 효율성, 유연성등 사용방법이 편리하다.

3. 정규 분포와 Patrticle 크기가 일정하다.

4. SUS 304로 만든 이류체 노즐방식의 분무 구조로 되어 있다. ( 316은 옵션 )

5. 정확한 온도 제어와 쉬운 매개 변수 조정이 가능하다.

6. 자체 충전 연동 펌프는 교차 오염을 방지하기 위해 메인 챔버 내로 직접연결하여 용기로부터 액체 샘플을 공급한다.



**사양**

1. SUS 304로 만든 두 개의 유체 분무 구조 ( 316 옵션 ) 스테인리스 스틸.

2. 표준을 사용하여 110 º C의 입구 온도의 물 증발 속도 : 약 1,000 ml의 ~ 1,800ml/hour

3. 최소 샘플 : 50ML

4. 정확한 온도 제어와 쉬운 매개 변수 조정을 보장.

5. 표준<0.7 mm 제트와 다른 크기의 액세서리로 사용.

6. 전력 : 4KW/380V

7. 낮은 온도에서 건조 스프레이110 ) 감온 재료에 사용.

8. 7 "고해상도 터치 스크린 LCD

소형 실험실용 저온분무 건조기는 주로 대학, 연구소와 화공업 기업 실험실에서 미량 과립, 분말의 생산에 적합하고, 모든 유제, 현탁액과 같은 용액에 대해 넓은 적용성을 가지고 있고, 열에 민감하게 반응하는 감성 물질에 대한 생물학적 제제, 생물 농약, 효소 제제와 같은 건조 등 에 적합하고, 분무 재료는 다만 과립을 내뿜을 때에 비로소 고온을 받기 때문이며, 일순간 표면에 있는 대부분의 수분이 순식간에 열을 받아 흡수하여 회수되는 건조분말은 열에 노출이 적다. 작업자가 원하는 이런 활성 재료는 건조 뒤에도 여전히 그 활성 요소가 파괴를 받지 않는 상태를 유지할 수 가 있다.


Application range:
For a long time laboratory traditional Herbal medicine, natural product extraction and juice spray drying have been a difficult problem for scientific research personnel. Upon laboratory traditional Herbal medicine (herbal) natural product extraction and juice spray drying, materials immediately melt when spray dried as they have a lot of carbohydrate compositions which are easy to melt at high temperature and they form sticky candy like substances on drying chamber wall of traditional spray dryer. As a result, scientific research personnel can not get desirable powder with good liquidity. Sometimes a lot of auxiliary materials are added in order to get the powder, such as starch or cyclodextrine, but no satisfactory effect has been achieved. KLSD-2000 laboratory low-temperature spray dryer is a breakthrough made by KoreaMedi Co., Ltd. with efforts in spray drying technology. KLSD-2000 can extract natural product and juice from traditional Herbal medicine in laboratory and get powder particles of excellent liquidity at a low temperature of 110°C with a high yield. In particular, it achieves rapid material drying at low temperature and provides very convenient and safe drying method for thermo-sensitive materials, such as biological product, high carbohydrate traditional Herbal medicine natural product extract, thermolabile polymer material, heat gasification material and so on.
Lab scale spray dryer is our latest type which adopts advanced international technology and spare parts.
It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language

Features:
1)Spray dry at low temperature 110 using for thermosensitive material.
27" high-resolution touch LCD, human-oriented interface, English menu, Optimize operation procedure, efficiency, flexibility, easy-going and easy learning.
3Patrticle size with normal distribution
4Two fluid atomizing structure, made of SUS 304316 optionalStainless steel. Easy operating.
5To assure accurate temperature control and easy parameter adjusting,KLSD-2000 applies PID.
6The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.

Parameters
1Two fluid atomizing structure, made of SUS 304316 optionalStainless steel. Easy operating.
2Evaporation rate of water at inlet temperature of 110ºC using Standard:Approximately 1000 ml 1800ml/hour
3Min. sample:50ml
4To assure accurate temperature control and easy parameter adjusting,KLSD-2000 applies PID.
5、Standard with jet and other sizes are available as accessories (0.5mm, 0.7mm, 1mm,
1.5mm, 2mm optional)
6Power: 4KW/380V
7Spray dry at low temperature 110using for thermosensitive material.
87" high-resolution touch screen LCD
