Single Tablet Press Making Machine KLTP-12/ 50/50A
실험실용 단발 타정기 KLTP-12/ 50/50A |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
실험실용 단발타정기 KLTP-12
- 화공 실험실용이나 소량의 생산에 사용되는 단발타정기이다.
- 각종 과립형의 재료에 압력을 가하여 둥근 모양의 정제를 만들며, 기기에는 한벌의 펀치를 장착하여 사용되어 질 수 있다.
- 재료의 하부펀치내에 충진깊이와 정제의 두께를 조절할 수가 있다.
- 기기의 외관이 미려하고 설계의 구조의 정밀하며 구조가 합리적이며 GMP 요구에 부합한 소형 단발타정기이다.

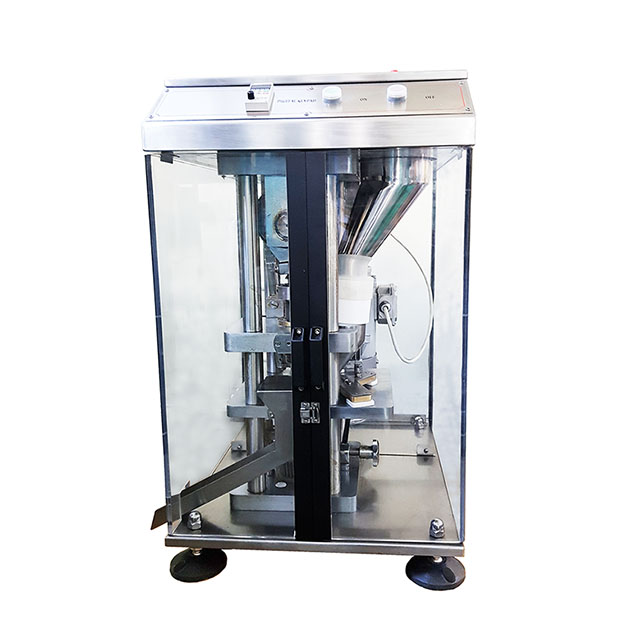

실험실용 단발타정기 KLTP-50/ KLTP-50A
- 기존의 동급의 단발타정기들을 연구분석하여 신기술을 성공적으로 도입하여 개발한 제품이다.
- 화학공업, 전자공업등에 과립원료를 압력으로 성형하며, 연속적인 작업을 하는 자동단발식타정기이다.
- 수준에 적합하고 연구소 및 소규모공장등에 필수적인 장비이다.
- 재료의 이용효율이 높고, 구조가 합리적이며, 조작이 편리하고, 기기의설치면적이 작다.
- 타정압력은 크고 소음이 적으며 정제의 중량편차가 작고, 충진깊이와 정제두께의 조절을 연속적으로 할 수가 있어 제품의 성능이 우수하다.
- 설계과정에서 모든조건을 면밀히 검토후 채택하여 품질을 높여 생산과정이 더욱더 안전하고 정제의 품질을 보증한다.
특징:
1. 기계의 완전 밀폐 구조는, 외부 먼지에의한 교차 오염을 방지하는 조건에 부합한다.
2. 안전보호 장치등으로 더욱 더 합리적으로 디자인되었다.
3. 사각으로된 구조는, 기계가 더 큰 조작공간을 보유하도록 한다.
4. 일체식 구동모터는 기계를 더욱 더 안전하게 작동하도록하고, 소음을 작게 한다.
|
|
모델 명 |
KLTP-12 |
펀치수 |
1
Set |
최대압력 |
15Kn |
최대정제직경 |
10~12mm |
최대충전깊이 |
11mm |
최대정제두께 |
0.5~6mm |
생산능력 |
3600~7200pc/h |
모터 |
250w |
기계중량 |
약 60Kg |
규격 (W x D x H) |
475×275×555mm |
모델 명 |
KLTP-50 /
50A |
펀치수 |
1
Set |
최대압력 |
50Kn |
최대정제직경 |
20mm
25mm |
최대충전깊이 |
20mm |
최대정제두께 |
0.5~8mm |
생산능력 |
3600pc/h
1400~3600pc/h |
모터 |
1P 220V/60HZ
1.5KW |
기계중량 |
약 150Kg
약
170kg |
규격 (W x D x H) |
580×500×830
mm |
|
|
** Characteristic **
KLTP-12: This model is a single station press that is specially designed for used in laboratory of production in small batches. It can press all kinds of granular materials into round tablets.The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adjustable. The outer appearance of the machine is well designed with a compact structure.It features a number of advantages such as reasonable layout,small dimension and large pressure.It is a small size equipment that compliance with requirements.
KLTP-50: This machine is widely used for chemical and metallurgy industry. It can press round tablets or irregular tablets from various granular materials. As its feature:high precision of filling, low-noise, low-consumption of material, and it works smoothly. It is a good machine designed for the lad used for research and for development in reserch and in industry and for small-scale production. |
|
Model |
KLTP-12 |
Hole(punch) |
1
Set |
Max dia of fill |
10~12mm |
Maximum Pressure (KN) |
15 KN |
Diameter of up and down panch pole |
11mm |
Max depth of fill |
5~6mm |
Prodution Capacity |
3600~7200pc/h |
Main mortor
power |
250w |
Weight |
약 60Kg |
Overall Size
(W x D x H) |
475×275×555mm |
Model |
KLTP-50 |
Hole(punch) |
1
Set |
Max dia of fill |
20~25mm |
Maximum Pressure (KN) |
50KN |
Diameter of up and down panch pole |
20mm |
Max depth of fill |
20mm |
Prodution Capacity |
3600pc/h |
Main mortor
power |
1P 220V/60HZ
1.5KW |
Weight |
150Kg |
Overall Size
(W x D x H) |
580×500×830
mm |
|
|
|
|
|
|
|
|
|
|
