Single Tablet Press Making Machine KTP-25N

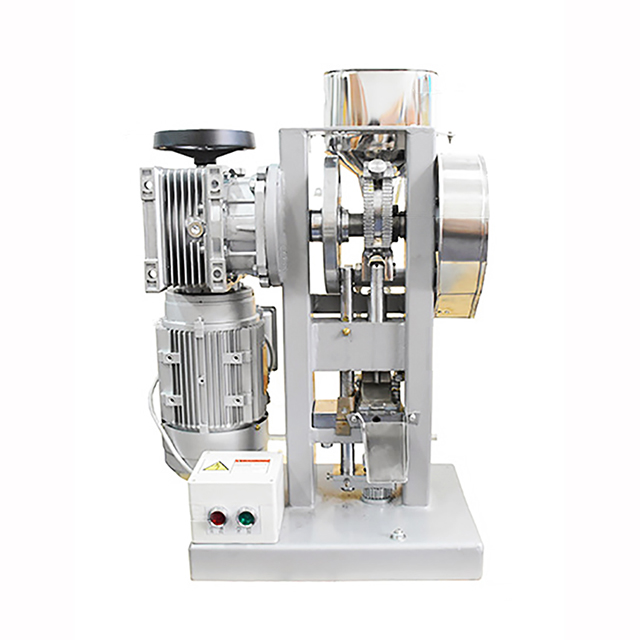

단발 타정기 KTP-25N







** 특징 **
- 화공 ,야금분야 및 기타분야에서 각종 과립형 원료를 원형으로 정제하는데 사용하고 실험실 시제품 제작과 소규모 생산에 적합하다.
- 소형 테이블식 전동 연속 정제기로써 한 세트의 펀치 다이만 설치가 가능하고 원료의 깊이 및 정제 두께는 조정 할 수 있다
- 펀치의 교환으로 정제의 모양을 바꿀 수가 있다
-  인버터를 추가하여 타정속도를 조절 할 수 있다 (옵션)
- 기존의 팬벨트방식에서 진보하여
모두 감속기어사용하여 직결방식으로 벨트방식보다 공정이 치밀하다.
- 기존의 과립공급구가 반회전 운동에서 전후 왕복운동으로 공정을 구별하여 과립공급구의 파손을 방지하였다.
- 시동시 수동핸들로 출발한 후 테스트 스위치로 단속적인 확인하는 기능을 추가하여 정상작동시의 부작용을 최소화하여 사용자의 편리함을 도모하였다.
- 모타의 마력을 증대하여 기기의 작동을 원활하게 하였다.

기 타 타 정 기
- 위 제품보다 정제의 직경이 더 크거나 두께가 더 두꺼운 것, 더 많은 생산량을 원하거나, 같은 정제를 두 번 타정할 용도의 타정기가 필요하면 단발식 ,로타리식 및 복식타정기등 그에 맞게 제작하여 납품가능하다.

모델 명 KTP-25N
펀치수 1 Set
최대압력 60 Kn
최대정제직경 25mm
최대충전깊이 18mm
최대정제두께   8mm
생산능력 3000pc/h
모터 1500w
전원 220V /60Hz
기계중량 약 75Kg
규격 (W x D x H) 460 x 360 x 690mm


** Characteristic **
This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape.


Features
1 it is single press machine
2 the tablet thickness, pressure and filling depth of material could be adjusted
3 the tablet press machine will work together with the punch and size. The punch and size will decide the tablet size and shape.
4 It is for hand-operated or electric-operated.
5 the speed of this machine could be adjustable (Option)



Model KTP-25N
Hole(punch) 1 Set
Max dia of fill 25mm
Diameter of up and down panch pole 18mm
Max depth of fill   8mm
Prodution Capacity 3000pc/h
Main mortor power 1500w/  220V
Max. pressure (kN) 60Kn
Weight 75Kg
Overall Size (W x D x H) 460 x 360 x 690mm
