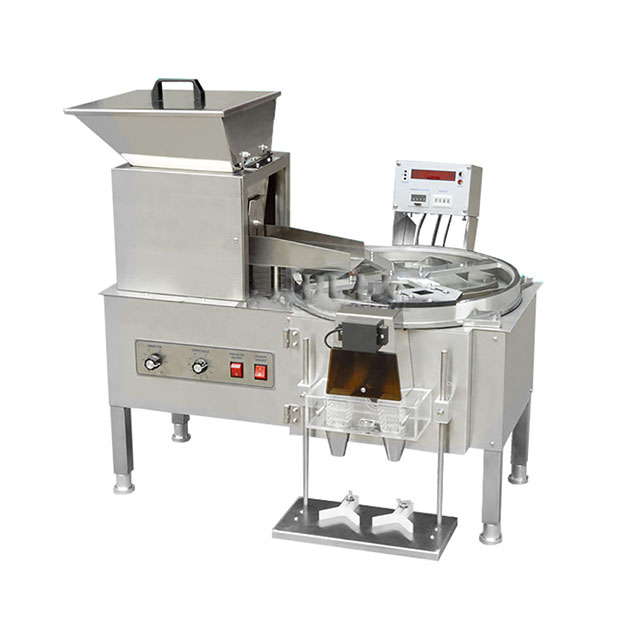

Automatic Counting Machine KCM / 자동 계수기 KCM-2










* 특 징 **
- 이 기기는 지름 5~12mm 크기의 일정한 모양(일정크기이상)을 갯수를정하여 포장용기에 담는 데 적합하다.
- 한번에 1병씩 담을 수 있다.
- 스텐레스 제품으로  적합한 수준이다
- 수량은 0~9999 입력이 가능하다.
- 수량감지센서로 포장갯수가 정확하다.
- 운반이 용이하고 사용법이 간단하다.
- 분해 조립이 편리하다.
- 소규모 공장의 포장용으로 적합하다.

 모델명 KCM-2
 전압 220V 60Hz
 생산량 1000~1800 tabs/Min
 중량 (kg) approx. 50kg
 규격 (L x W x H): 76 x 66 x 70 cm

** Feature*
The number of pellet counted can be arbitrarily set up among 0 ~ 9999.
Stainless steel material for whole machine body can meet with specification.
Easy to operate and so special traning required.
Precision pellet count with special electrical eye protection  device.
Rotary counting design with fast and smooth operation.
The rotary pellet counting speed can be adjusted with stepless according to the bottle speed manually.
The interior of the machine is qipped with duat cleaner to avoid the dust effect on the machine.
Vibration feeding, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of the medical pellet out put.


 Model Type KCM
 Power 220V 60Hz
 Out put 1000~1800 tabs/Min

 Weight  (kg)

approx. 50kg
 Dimensions (WxDxH) 76 x 66 x 70 cm
